Installation instructions for Fiat 500, Abarth 500, 595, 695 instrument cluster LCD display

Before installing the new display, please read the following instructions carefully.
DO NOT SKIP ANY STEPS.

Download printable PDF

ATTENTION: THESE INSTRUCTIONS ARE VALID ONLY FOR SEPDISP66V4, SEPDISP66V12 AND SEPDISP66V13 DISPLAYS

1

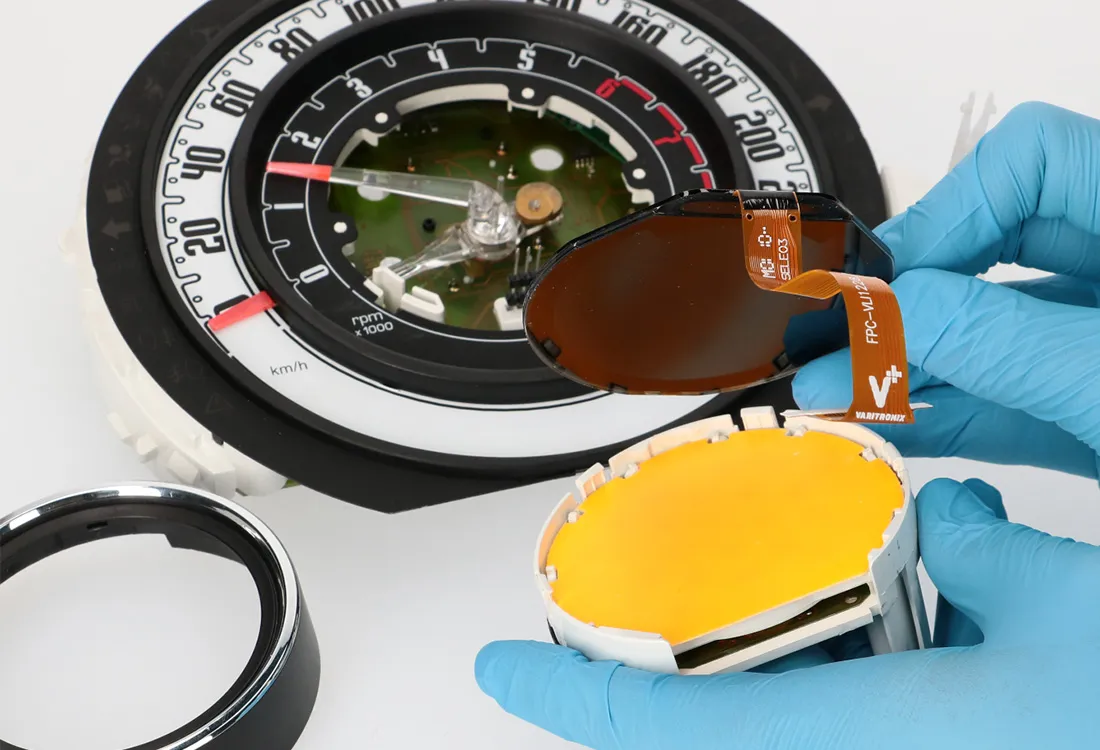

Disassemble the instrument cluster and remove the faulty display.

2

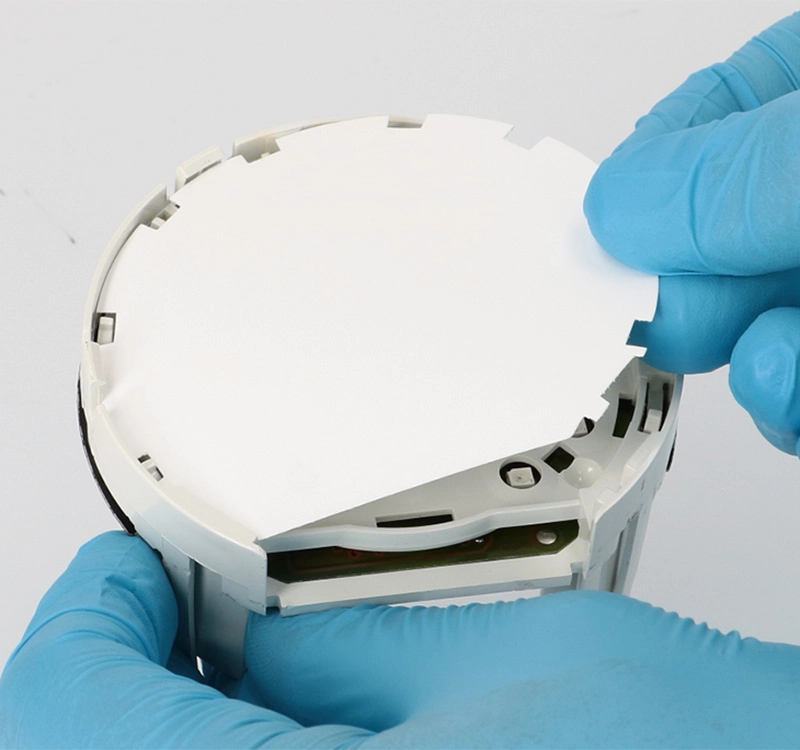

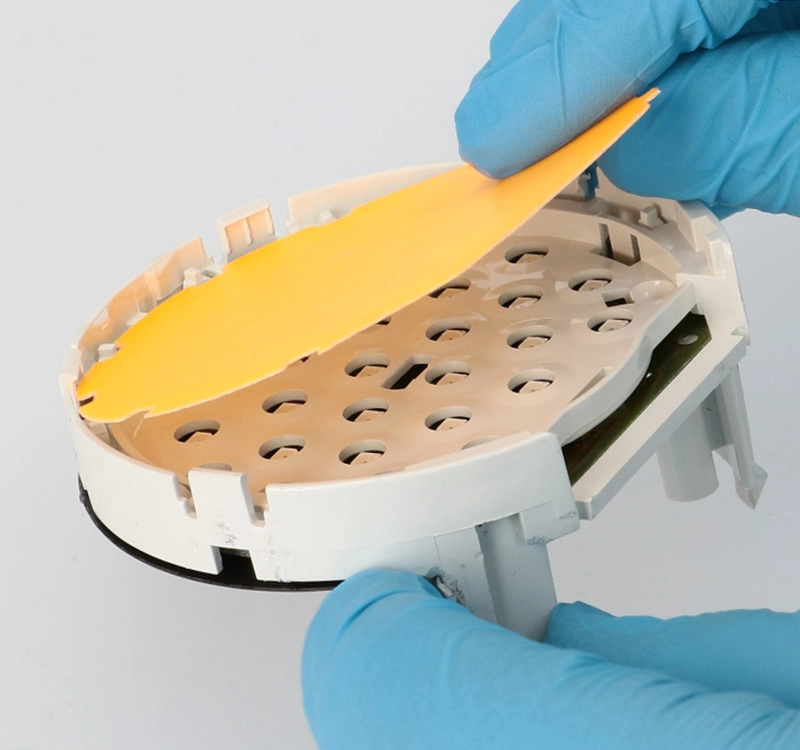

Place the white backlight diffuser supplied with the Minitools display, underneath the orange one.

3

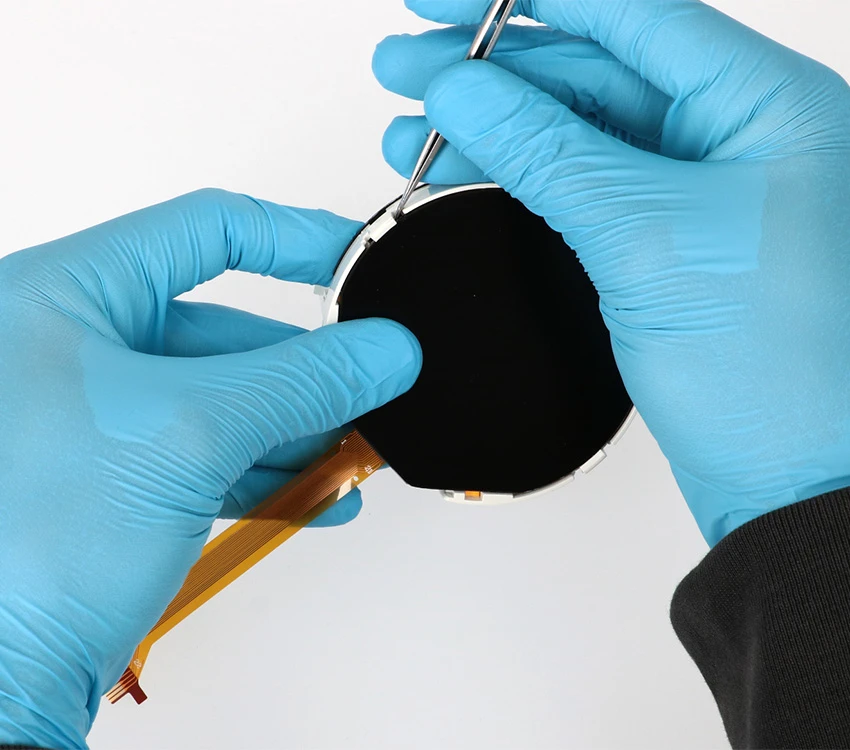

Install the Minitools display.
