Display tachimetro VW Touareg


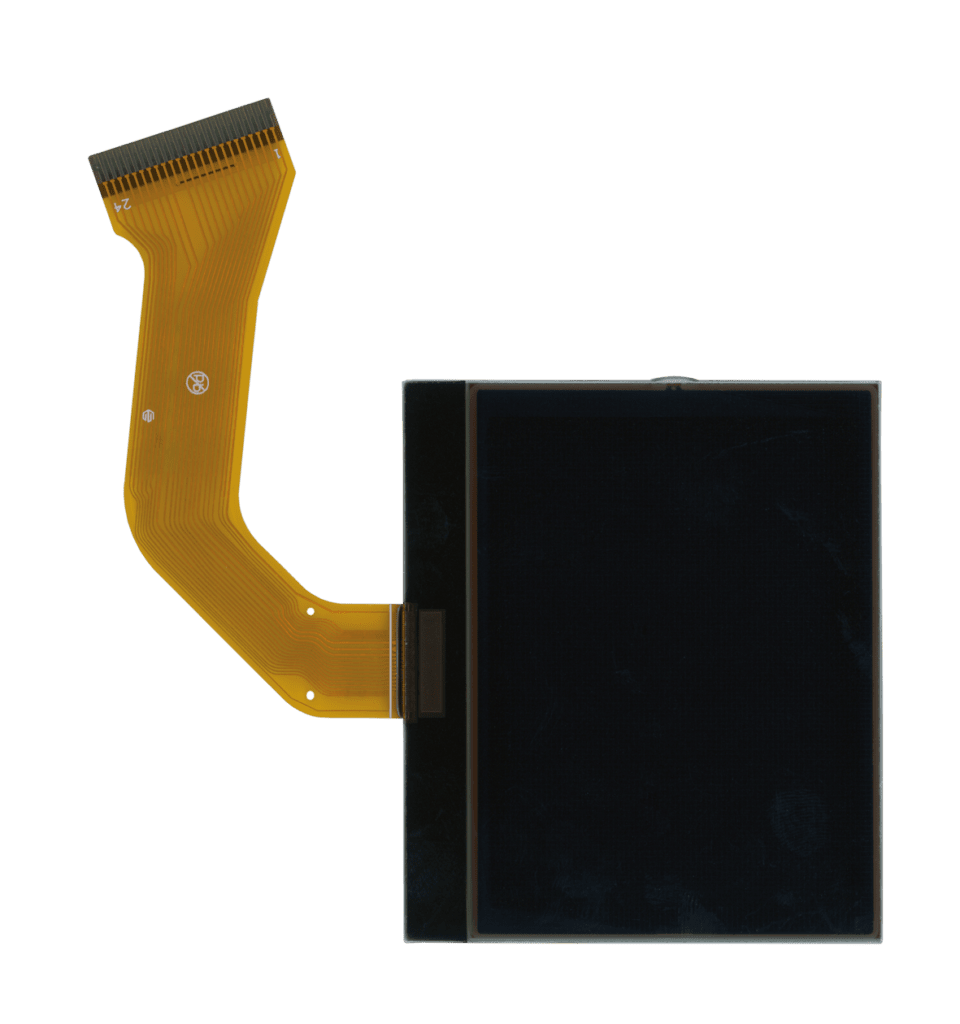

Modification for Porsche Cayenne and Volkswagen Touareg LCD display

WARNING: This process is recommended only to expert and qualified staf

Before installing the new SEPDISP27 display, please read the following instructions carefully.

The following instructions are for SEPDISP27 displays marked with D27A02XXXX serial numbers on the FPC (see picture beside).

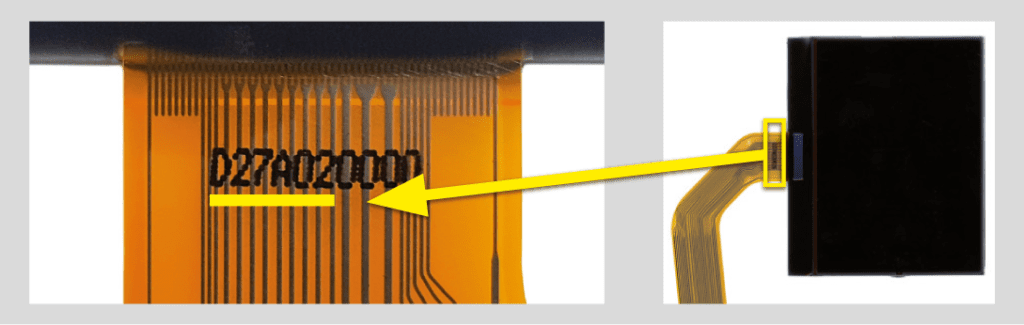

Where to find the code on the FPC of Volkswagen Touareg 7L and Porsche Cayenne Mk1

Replace the display in an ambient temperature of 25 °C.
After replacing the LCD, switch on the cluster (pin no. 1 positive, pin no. 24 negative)
If you have a multimeter with needle probes, measure the voltage between A and B points on the rear of the board (see
picture 1), OTHERWISE remove the pointers and the front panel and measure the voltage between A and B points on the
front part of the board (see picture 2).

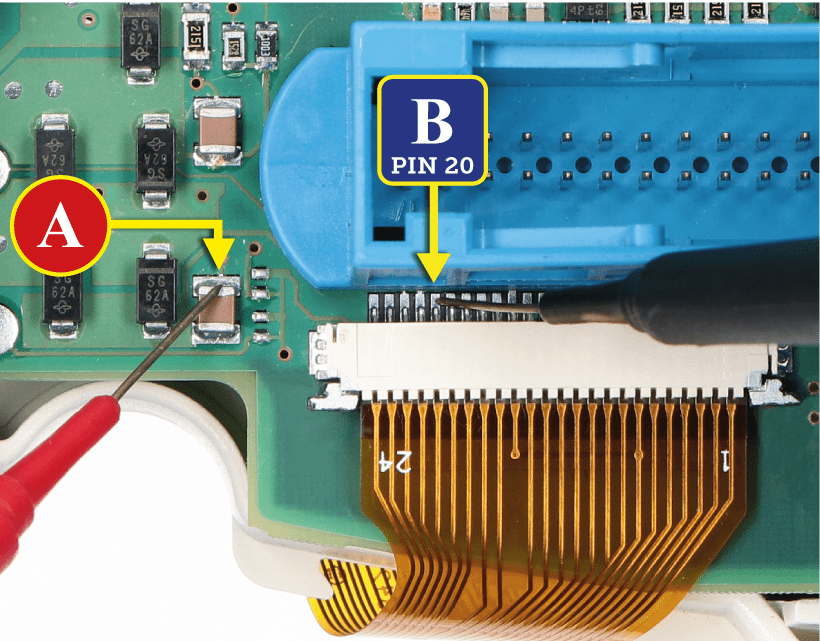

Where to measure the voltage with needle probes on Porsche Cayenne and VW Touareg Mk1 dashboards
Fig. 1

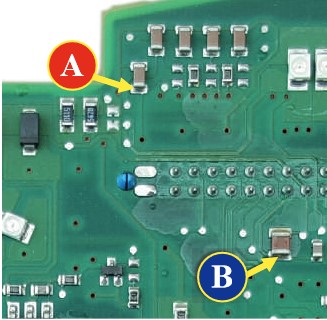

Where to measure on the insrument clusters of Porsche Cayenne and VW Touareg
Fig. 2

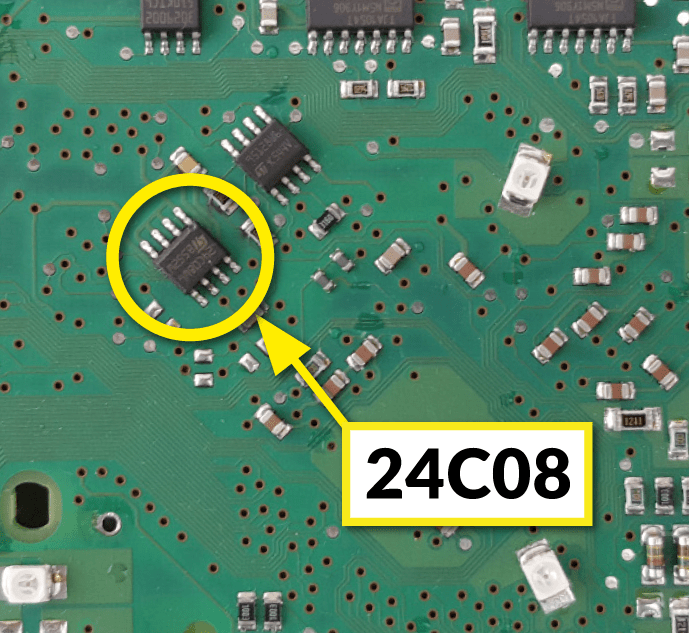

Where to find the EEPROM 24C08 on VW Touareg 7L and Porsche Cayenne 9PA speedometers
Fig. 3

If the voltage measured is between 7,0V and 7,2V, no modification is necessary;
If the voltage detected is instead lower than 7,0V or higher than 7,2V, it is necessary to do the modification described in the
following paragraph “EEPROM MODIFICATION


NOTE: For this modification on the instrument clusters,
it is necessary to use an EEPROM programmer.
We recommend our SEP-EECLIP.

First, set the programmer reading in hexadecimal (HEX).
Make a backup of the 24C08 EEPROM, which is on
the cluster (picture 3).

To reach a voltage between 7,0V and 7,2V, it is necessary to modify the value of 0320 location OR the one of 0343 location; to identify which location to act on, locate the group of 3 consecutive values: “14, 28, 78”. The value to be modified is always the one before the group just mentioned.

Please note that increasing or decreasing these locations by 1 HEX unit, the variation will be +/- 0.1V.

If not familiar with hexadecimal calculation, it is possible to use the calculation tool in the box beside, simply typing in the values.

NOTE: For the oflline version download PDF.

Calcolo SEPDISP27


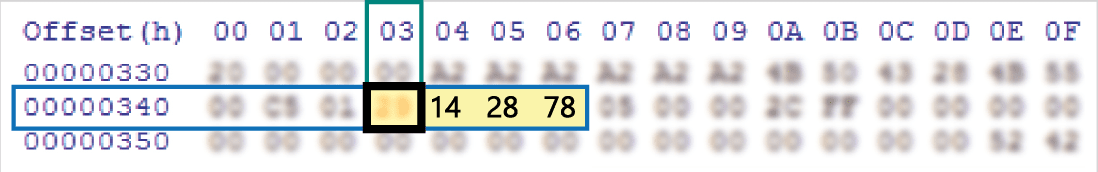

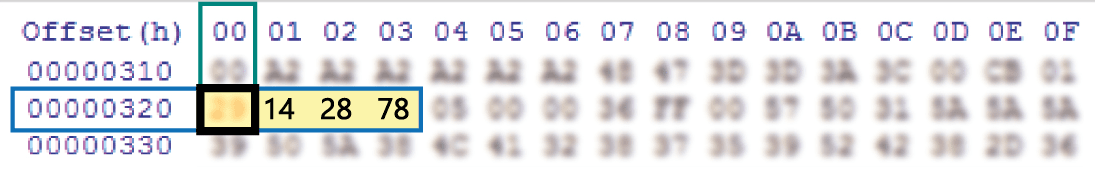

*Come individuare il valore della locazione 0320 e della locazione 0343 sul programmatore EEPROM

Come identificare il valore della locazione 0320 sulla EEPROM 24C08 Come identificare il valore della locazione 0343 sulla EEPROM 24C08

Video Tutorial

How to repair Volkswagen Touareg Mk1 and Porsche Cayenne Mk1 dashboards with Minitools SEPDISP27 LCD display
